First EIE SA – The Efficient SXT line of photoplotters retains the same general principles that have made the worldwide reputation of the previous models while introducing a significant leap forward in speed and exposure.
With its single multi-beam STH head, its innovative electronics enccompassing powerful internal computer, the RP+SXT series can plot up to four times as fast as its predecessors keeping a maximum drum rotating speed of 110 rpm to avoid wear and vibrations.

Most advanced features

With its established proprietary MRLD array, the SDH head with precise beam equalization, available for the RP+SXT series gives perfectly homogeneous and sharp spots. For the high-end metric models it can produce spots as small as 4 μ in order to produce high quality photo tools with 5 μ lines and spaces.

RP700+SXT

Perfect Environement Control
– Temperature and humidity monitoring
– Geometry control
– Dust protection
Vertical high capacity Auto-loading system
– 1 x 150 films
– 2 x 150 films
– Maximum film size : 28” x 36”
High throughput
– 4’000 to 50’000 dpi
– 512 beam STH head

State-of-the-Art Optical Engine
Unbeatable Imaging quality

Precise light Beam equalization
The guarantee to produce sharp and very accurate HDI lines and spaces.

Impression

Line width variation within 2 μm at 12’000 dpi and above when optimum
film processing conditions are met.

Impression

Temperature and humidity monitoring
For constant accuracy and repeatability to compensate the film unstability
Film instability for a 610 x 508 mm (24“x 20”) film size
11 μm (0.4 mil) for a 1°C variation 7 μm (0.3 mil) for a 1% humidity variation


Highest Accuracy
Remarkable stability and reliability

Queue manager user interface
Data input formats : RS274D, RS274X, EIE RPL and DPF.
Optional softwares : ODB++ LINK, AUTOFOS and EIE Postscript RIP.

Automation
Multiple Format Automatic Film Loader with Automatic Film Counter

Films Conveyor compatible with most film processors.

Impression

Specifications (PDF)
Specifications (PDF)
Specifications (PDF)
Specifications (PDF)
Specifications (PDF)
First EIE SA The new XT line of photoplotters retains the same general principles that have made the worldwide reputation of the previous models while introducing a significant leap forward in speed and image quality.

+ High Speed
With new electronics and a powerful internal computer, the RP+XT series can plot up to six times faster than its predecessors being able to turn out up to 30 films (24” x 20”) per hour.

+ Technology
With its new proprietary MRLD array, the improved 512 beam head SDH3 available for the RP+XT series gives perfectly homogeneous and sharp spots. For the high-end metric models it can produce spots as small as 6 μm to bring the capability of producing high quality

Most cost efficient solution

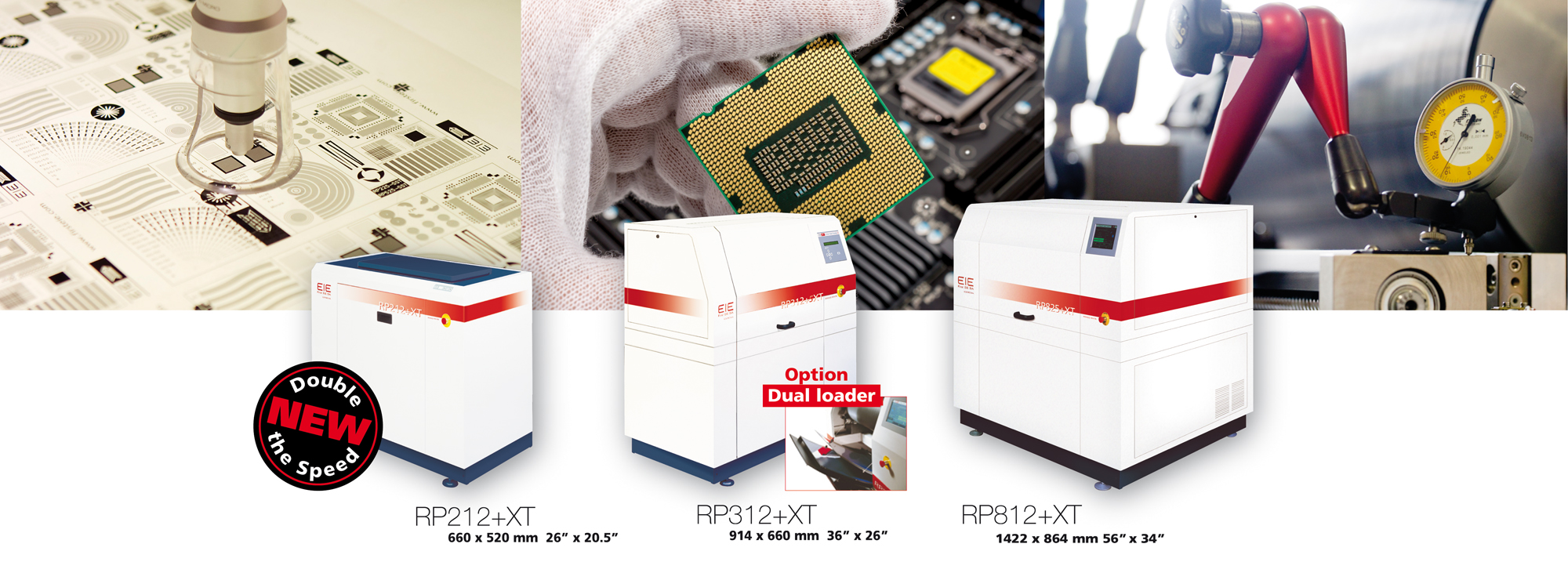

RP212+XT

True multiple size autoloader
Automatic film loading system.
Up to 150 films with film counter.
Reliable film pickup.

High Throughput
Dual Format Automatic Film Loader with Film Counter.

Precise light Beam equalization
The guarantee to produce sharp and very accurate HDI lines and spaces.

Impression

Line width variation within 2 μm at 12’000 dpi and above when optimum
film processing conditions are met.

Impression

Temperature and humidity monitoring
For constant accuracy and repeatability to compensate the film unstability
Film instability for a 610 x 508 mm (24“x 20”) film size
11 μm (0.4 mil) for a 1°C variation 7 μm (0.3 mil) for a 1% humidity variation


Highest Accuracy
Remarkable stability and reliability

Queue manager user interface
The most efficient tool to organize your work flow

Data input formats : RS274D, RS274X, EIE RPL and DPF.
Optional softwares : ODB++ LINK, AUTOFOS and EIE Postscript RIP.

Smallest Footprint
Multiple Format Automatic Film Loader with Automatic Film Counter

Films Conveyor compatible with most film processors.

Impression
